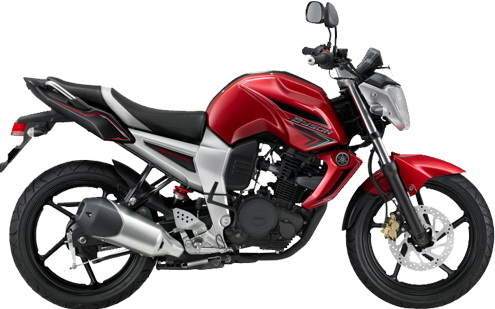

Yamaha Byson

Yamaha Byson , Engine 153 CC , SOHC

DIMENSIONS

P x L x H: 2.075mm x 780mm x 1.045mm
Wheel distance: 1334 mm
Distance Lowest to Land: 160 mm
Seat Height: 790 mm
Fill Weight: 137 kg
Fuel Tank Capacity: 12 Liter

MACHINE

Engine type: 4 Step, SOHC, 2 Valve, Air Cooled
Number / Position Cylinders: Single Cylinder / Vertical
Cylinder Volume: 153 cm3
Bore x Stroke: 58.0 x 57.9 mm
Compression Ratio: 9:50: 1
Maximum Power: 13.73 PS / 7500 rpm (10.1 kW / 7500 rpm)
Maximum torque: 13.6 Nm / 6,000 rpm
Starter System: Electric Starter and Kick Starter
Lubrication System: Wet
Engine Oil Capacity: Total: 1.2 Liter / Replacement Periodical: 1.0 Liter
Type Carburetors (Mikuni) BS26 x 1
Clutch Type: Wet, Manual Clutch
Transmission type: 5 speed (1-N-2-3-4-5)

FRAME

Frame Type: Diamond
Suspension Front: Telescopic
Rear Suspension: Suspension monocross
Tires Front: tubeless 100/80-17M/C 52P
Tires Rear: tubeless 120/70-17M/C 58P
Brakes Front: Disc
Brakes Rear: Tromol


ELECTRICITY

Ignition system: DC C.D.I
Battery: YTZ4V 12V / 3 Ah (MF Battery)
Spark plug type: NGK / CPR 8EA-9
